Common Errors When Working with Vivado and SystemVerilog
Table of Contents
- Common Errors When Working with Vivado and SystemVerilog
Errors Related to the Vivado EDA Tool
Simulation fails to start: FATAL_ERROR PrivateChannel Error creating client socket
Cause: The error is related to issues with Windows Sockets, which prevent the simulation from being launched on network drives.
How to reproduce: Create a project on a network drive.
Solution: You most likely created the project on the H:/ drive. Create the project on a local drive (for example, on the C:/ drive or the Desktop).
Simulation fails to start: boost filesystem remove The process cannot access the file
Error screenshot:
Cause: You launched the simulation with a different top-level module without closing the previous simulation.
Most likely, after creating the testbench, you started the first simulation too quickly. As a result, Vivado did not have time to update the module hierarchy and set the testbench as the top-level module. In the running simulation all signals were in Z and X states, after which you tried to restart it. By the time of the restart, the module hierarchy had updated and the top-level module had changed, which caused the error.
How to reproduce: Launch a simulation, create a new simulation file, set it as the top-level module, and launch the simulation again.
Solution: Close the previous simulation (right-click on the SIMULATION button → Close Simulation), then start a new one.

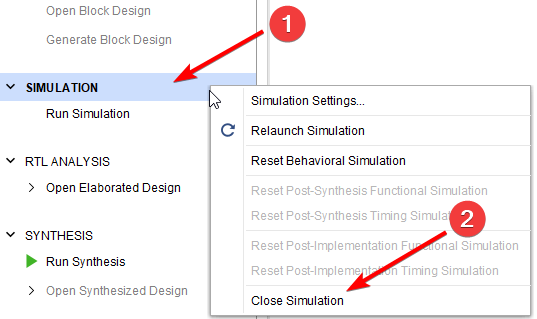

Illustration of closing the simulation:
Vivado crashes when trying to open a schematic
Cause: Cyrillic characters (Russian letters) in the Vivado working directory path. The most likely cause is Cyrillic characters in the username (NOT IN THE VIVADO INSTALLATION PATH).
How to reproduce: (See the solution — to reproduce the issue, do the reverse and give the folder a name containing Cyrillic characters.)
Solution: Rather than creating a new user without Cyrillic characters in the name, it is easier to assign Vivado a new working directory.
To do this:
- Create a folder in the root of the
C:/drive (for example,Vivado_temp). - Open the properties of the Vivado shortcut (right-click on the shortcut → Properties).
2.1 If you do not have a Vivado shortcut on the Desktop and instead launch it from the Start menu, right-click the Vivado icon in the Start menu → Open file location. If a shortcut is shown there, perform step 2. If the executable file is shown there, create a shortcut for it (right-click the file → Create shortcut) and then perform step 2. - In the Start in field, enter the path to the directory you created (in the example from step 1 this path would be:
C:/Vivado_temp). Click OK.

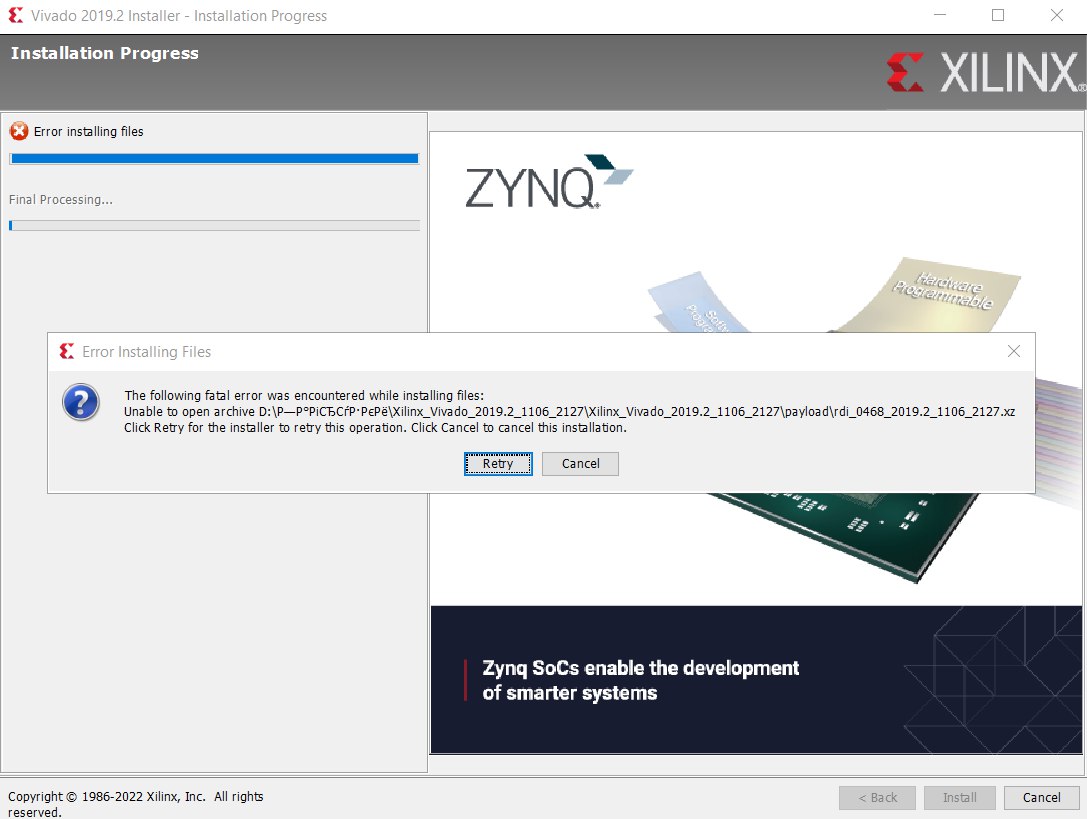

Vivado installation fails: Unable to open archive
Illustration:
Cause: The problem is most likely that the installation files (NOT THE VIVADO INSTALLATION PATH) are located at a path containing Cyrillic characters (for example, in a personal "Downloads" folder with a Cyrillic name).
Solution: Move the installation files to a directory whose path contains no Cyrillic characters.
SystemVerilog Syntax Errors
signal name is not a type
The compiler most likely failed to recognize the assignment because it was written incorrectly. Outside always and initial blocks, only continuous assignments (using assign) are permitted.
module half_adder(input logic a, input logic b, output logic c);
c = a ^ b; // error: the keyword assign is required
// for a continuous assignment
endmodule
cannot find port on this module
The port name specified when instantiating the module (after the dot) does not match any signal name in the instantiated module.
Example:
module half_adder(input logic a, input logic b, output logic c);
assign c = a ^ b;
endmodule
module testbench();
logic A, B, C;
adder DUT(
.A(A), // <- error here,
// because module half_adder has no port named 'A'
.b(B),
.c(C)
);
endmodule
