To release a microcontroller "into the wild" — that is, to use it independently of all this additional equipment and outside laboratory conditions — a mechanism for replacing the executable program must be provided.

Objective

Implementation of a programmer — a part of the microcontroller that enables receiving an executable program from devices external to the system.

Workflow

Learn about programmers and bootloaders (#theory)
Study finite-state machines and their implementation approaches (#practice)
Describe the rewritable instruction memory (#instruction memory)
Describe and verify the programmer module (#programmer)
Integrate the programmer into the processor system and verify it (#integration)
Verify the system operation on an FPGA using the provided memory initialization script (#verification)

Theory

Until now, the program executed by the processor was loaded into instruction memory via the $readmemh magic call. However, real microcontrollers do not have such capabilities. A program from the outside world reaches them through a so-called programmer — a device that writes the program into the microcontroller's memory. The programmer writes data to non-volatile memory (ROM). For the program to transfer from ROM to instruction memory (RAM), after the microcontroller starts, a bootloader executes first — a small program embedded in the microcontroller's memory at the time of manufacture. The bootloader is responsible for initial initialization of various registers and preparing the microcontroller to execute the main program, including transferring it from ROM to instruction memory.

Over time, several bootloader stages emerged: the first stage bootloader (fsbl) runs first, followed by a second stage bootloader (the program commonly known as u-boot often serves this role). Such a bootloader hierarchy may be required, for example, when loading an operating system (which is stored in a file system). The code for working with the file system may simply not fit in the first stage bootloader. In that case, the sole purpose of the first stage bootloader is to load the second stage bootloader, which in turn is capable of interacting with the file system and loading the operating system.

In addition, the second stage bootloader code can be modified, since it is programmed together with the main program. The first stage bootloader, however, cannot always be modified.

In this lab we will simplify the program transfer process slightly: instead of writing to ROM, the programmer will write directly to instruction memory, bypassing the bootloader.

Practice

Finite-State Machines (FSM)

The programmer will be implemented as a module with a finite-state machine. A finite-state machine consists of:

a memory element (the so-called state register);
logic that drives changes to the state register value (state transition logic) depending on the current state and input signals;
logic responsible for the FSM outputs.

Finite-state machines are typically described as directed state transition graphs, where graph vertices are the FSM states and edges (arcs) are the conditions for transitioning from one state to another.

A turnstile is the simplest example of a finite-state machine. When a valid token is inserted into the turnstile's slot, it unlocks the rotating arm. After an attempt to push through the arm, it locks again until the next token.

In other words, the turnstile has:

two states
- locked (locked)
- unlocked (unlocked)
two inputs (events)
- token accepted (coin)
- attempt to push the arm (push)
one output
- arm lock

A single-bit register is sufficient to represent the two states. A clock signal and a reset signal are also required to interact with the register.

Let us describe this FSM as a state transition graph:

Figure 1. State transition graph of the turnstile FSM [1].

The filled circle with an arrow pointing to the Locked vertex represents the reset signal. In other words, on reset the turnstile always transitions to the locked state.

As we can see, inserting another token while in the unlocked state keeps the state unchanged (but the turnstile does not remember that two tokens were inserted, and will lock again after the first pass). Attempting to push through the arm while in the locked state keeps the FSM in the locked state.

It is also necessary to define transition priority: first the arm push attempt is checked, and only if no such attempt occurred is the token insertion checked. This priority could also be indicated on the graph by annotating the edges to show that the transition to the unlocked state is only possible when the push signal is absent.

Implementing Finite-State Machines in SystemVerilog

Looking at the components of a finite-state machine, you may have wondered: how does an FSM differ from sequential logic, since they are composed of the same elements? The answer is: not at all. Finite-state machines are a mathematical abstraction over the sequential logic function [2]. In other words, a finite-state machine is simply a different way of representing sequential logic — and you already know how to implement sequential logic.

To implement the state register of an FSM, it is convenient to use a special SystemVerilog type called enum (enumeration).

Enumerations allow declaring a unified set of named constants. The declared names can then be used in place of the enumerated values they correspond to, which improves code readability. Unless specified otherwise, the first name is assigned the value 0, and each subsequent name increments by 1 relative to the previous value.

module turnstile_fsm(
  input  logic clk,
  input  logic rst,
  input  logic push,
  input  logic coin,
  output logic is_locked
);

  enum logic {LOCKED=1, UNLOCKED=0} state;

  assign is_locked = state == LOCKED;

  always_ff @(posedge clk) begin
    if(rst) begin
      state <= LOCKED;
    end
    else begin
      if(push) begin
        state <= LOCKED;
      end
      else if (coin) begin
        state <= UNLOCKED;
      end
      else begin
        state <= state;
      end
    end
  end
endmodule

Listing 1. Example implementation of a turnstile FSM.

Furthermore, with appropriate tool support, enum object values can be displayed on a waveform using their named labels:

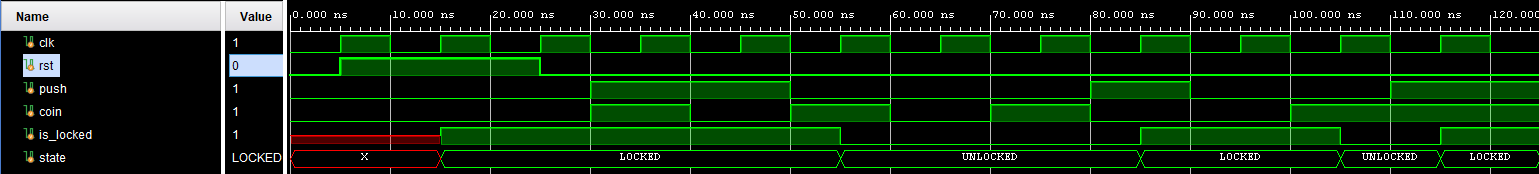

Figure 2. Displaying enum object values on a waveform.

A separate combinational signal fed directly to the state register input (commonly called next_state) is often used when describing the state register. The turnstile FSM above is too simple to demonstrate the advantages of this approach. Suppose that on the transition from the locked state to the unlocked state we want a green light to flash on and immediately off. Without the next_state signal, such a module could be described as:

module turnstile_fsm(
  input  logic clk,
  input  logic rst,
  input  logic push,
  input  logic coin,
  output logic is_locked,
  output logic green_light
);

  enum logic {LOCKED=1, UNLOCKED=0} state;

  assign is_locked = state == LOCKED;

  // (!push) && coin — condition for transitioning to UNLOCKED state
  assign green_light = (state == LOCKED) && (!push) && coin;

  always_ff @(posedge clk) begin
    if(rst) begin
      state <= LOCKED;
    end
    else begin
      if(push) begin
        state <= LOCKED;
      end
      else if (coin) begin
        state <= UNLOCKED;
      end
      else begin
        state <= state;
      end
    end
  end
endmodule

Listing 2. Example implementation of an extended turnstile FSM.

Using the next_state signal, the FSM could be rewritten as follows:

module turnstile_fsm(
  input  logic clk,
  input  logic rst,
  input  logic push,
  input  logic coin,
  output logic is_locked,
  output logic green_light
);

  enum logic {LOCKED=1, UNLOCKED=0} state, next_state;

  assign is_locked = state == LOCKED;

  assign green_light = (state == LOCKED) && (next_state == UNLOCKED);

  always_ff @(posedge clk) begin
    if(rst) begin
      state <= LOCKED;
    end
    else begin
      state <= next_state;
    end
  end

  always_comb begin
    if(push) begin
      next_state = LOCKED;
    end
    else if (coin) begin
      next_state = UNLOCKED;
    end
    else begin
      next_state = state;
    end
  end
endmodule

Listing 3. Example implementation of an extended turnstile FSM using the next_state signal.

At first glance this may seem more complex. First, an additional signal appeared. Second, an extra always block was added. However, imagine for a moment that the transition conditions are something more complex than a 1-bit input signal. And that those conditions govern not just one output signal but many output signals as well as internal memory elements beyond the state register. In that case, the next_state signal avoids duplicating many conditions.

It is important to note that enum objects can only be assigned enumerated constants or objects of the same type. In other words, state can be assigned LOCKED/UNLOCKED or next_state, but cannot be assigned, for example, 1'b0.

Assignment

To complete this lab, you must:

describe the rewritable instruction memory;
describe the programmer module;
replace the instruction memory in processor_system with the new one and integrate the programmer.

Rewritable Instruction Memory

Since the instruction memory previously only supported read operations and not write operations, the programmer will be unable to write the program received from the outside world into it. Therefore, a write port must be added to the instruction memory. To distinguish this implementation of the instruction memory from the previous one, this module will be named rw_instr_mem:

module rw_instr_mem
import memory_pkg::INSTR_MEM_SIZE_BYTES;
import memory_pkg::INSTR_MEM_SIZE_WORDS;
(
  input  logic        clk_i,
  input  logic [31:0] read_addr_i,
  output logic [31:0] read_data_o,

  input  logic [31:0] write_addr_i,
  input  logic [31:0] write_data_i,
  input  logic        write_enable_i
);

  logic [31:0] ROM [INSTR_MEM_SIZE_WORDS];

  assign read_data_o = ROM[read_addr_i[$clog2(INSTR_MEM_SIZE_BYTES)-1:2]];

  always_ff @(posedge clk_i) begin
    if(write_enable_i) begin
      ROM[write_addr_i[$clog2(INSTR_MEM_SIZE_BYTES)-1:2]] <= write_data_i;
    end
  end

endmodule

Listing 4. The rw_instr_mem module.

Programmer

You need to implement a programmer module that uses uart on one "side" as the interface for exchanging data with the outside world, and on the other side uses interfaces for writing the received data to instruction memory and data memory.

Module Description

The module is based on a finite-state machine with the following state transition graph:

Figure 3. State transition graph of the programmer.

This FSM implements the following algorithm:

Receive a command ("write the next block" / "programming complete"). This command is the write address of the next block; if the address equals 0xFFFFFFFF, it means the "programming complete" command.
1. Upon receiving the "programming complete" command, the module finishes its operation by de-asserting the processor reset signal.
2. Upon receiving the "write the next block" command, proceed to step 2.
The module sends a message indicating it is ready to receive the size of the next block.
The size of the next block is transmitted.
The module acknowledges receipt of the block size and echoes its value.
The next block is transmitted and written starting at the address received in step 1.
After receiving the number of bytes of the next block specified in step 3, the module reports that writing is complete and returns to waiting for the next command in step 1.

The following conditions are indicated on the FSM transition graph:

send_fin = ( msg_counter == 0) && !tx_busy — condition for the module to finish transmitting a message via uart_tx;
size_fin = ( size_counter == 0) && !rx_busy — condition for the module to finish receiving the size of the upcoming block;
flash_fin = (flash_counter == 0) && !rx_busy — condition for the module to finish receiving the block of data to be written;
next_round = (flash_addr !='1) && !rx_busy — condition for writing a data block via the system bus.

Below is the module prototype with partially implemented logic:

module bluster
(
  input   logic clk_i,
  input   logic rst_i,

  input   logic rx_i,
  output  logic tx_o,

  output logic [ 31:0] instr_addr_o,
  output logic [ 31:0] instr_wdata_o,
  output logic         instr_we_o,

  output logic [ 31:0] data_addr_o,
  output logic [ 31:0] data_wdata_o,
  output logic         data_we_o,

  output logic core_reset_o
);

import memory_pkg::INSTR_MEM_SIZE_BYTES;
import bluster_pkg::INIT_MSG_SIZE;
import bluster_pkg::FLASH_MSG_SIZE;
import bluster_pkg::ACK_MSG_SIZE;

enum logic [2:0] {
  RCV_NEXT_COMMAND,
  INIT_MSG,
  RCV_SIZE,
  SIZE_ACK,
  FLASH,
  FLASH_ACK,
  FINISH}
state, next_state;

logic rx_busy, rx_valid, tx_busy, tx_valid;
logic [7:0] rx_data, tx_data;

logic [5:0] msg_counter;
logic [31:0] size_counter, flash_counter;
logic [3:0] [7:0] flash_size, flash_addr;

logic send_fin, size_fin, flash_fin, next_round;

assign send_fin   = (msg_counter    ==  0)  && !tx_busy;
assign size_fin   = (size_counter   ==  0)  && !rx_busy;
assign flash_fin  = (flash_counter  ==  0)  && !rx_busy;
assign next_round = (flash_addr     != '1)  && !rx_busy;

logic [7:0] [7:0] flash_size_ascii, flash_addr_ascii;
// The generate block allows creating module structures in a loop or conditionally.
// In this case, a pattern was found in the continuous assignments that allows
// describing groups of four assignments in a more general form as a loop.
// Important: this loop only automates the description of assignments and will
// be unrolled into four groups of four continuous assignments during synthesis.
genvar i;
generate
  for(i=0; i < 4; i=i+1) begin
    // This logic converts flash_size and flash_addr signals,
    // which are raw binary numbers, into ASCII characters [1]

    // Each byte of flash_size and flash_addr is split into two nibbles.
    // A nibble is 4 bits. Each nibble can represent a hexadecimal digit.
    // If a nibble is less than 10 (4'ha), it is represented by digits 0-9.
    // To get its ASCII code, add 8'h30 (ASCII code of '0').
    // If a nibble is greater than or equal to 10, it is represented by letters a-f.
    // To get its ASCII code, add 8'h57
    // (which is the ASCII code of 'a' = 8'h61, minus 10).
    assign flash_size_ascii[i*2]    = flash_size[i][3:0] < 4'ha ? flash_size[i][3:0] + 8'h30 :
                                                                  flash_size[i][3:0] + 8'h57;
    assign flash_size_ascii[i*2+1]  = flash_size[i][7:4] < 4'ha ? flash_size[i][7:4] + 8'h30 :
                                                                  flash_size[i][7:4] + 8'h57;

    assign flash_addr_ascii[i*2]    = flash_addr[i][3:0] < 4'ha ? flash_addr[i][3:0] + 8'h30 :
                                                                  flash_addr[i][3:0] + 8'h57;
    assign flash_addr_ascii[i*2+1]  = flash_addr[i][7:4] < 4'ha ? flash_addr[i][7:4] + 8'h30 :
                                                                  flash_addr[i][7:4] + 8'h57;
  end
endgenerate

logic [INIT_MSG_SIZE-1:0][7:0] init_msg;
// ASCII code of the string "ready for flash starting from 0xflash_addr\n"
assign init_msg = { 8'h72, 8'h65, 8'h61, 8'h64, 8'h79, 8'h20, 8'h66, 8'h6F,
                    8'h72, 8'h20, 8'h66, 8'h6C, 8'h61, 8'h73, 8'h68, 8'h20,
                    8'h73, 8'h74, 8'h61, 8'h72, 8'h74, 8'h69, 8'h6E, 8'h67,
                    8'h20, 8'h66, 8'h72, 8'h6F, 8'h6D, 8'h20, 8'h30, 8'h78,
                    flash_addr_ascii, 8'h0a};

logic [FLASH_MSG_SIZE-1:0][7:0] flash_msg;
// ASCII code of the string: "finished write 0xflash_size bytes starting from 0xflash_addr\n"
assign flash_msg = {8'h66, 8'h69, 8'h6E, 8'h69, 8'h73, 8'h68, 8'h65, 8'h64,
                    8'h20, 8'h77, 8'h72, 8'h69, 8'h74, 8'h65, 8'h20, 8'h30,
                    8'h78,      flash_size_ascii,      8'h20, 8'h62, 8'h79,
                    8'h74, 8'h65, 8'h73, 8'h20, 8'h73, 8'h74, 8'h61, 8'h72,
                    8'h74, 8'h69, 8'h6E, 8'h67, 8'h20, 8'h66, 8'h72, 8'h6F,
                    8'h6D, 8'h20, 8'h30, 8'h78,     flash_addr_ascii,
                    8'h0a};

uart_rx rx(
  .clk_i      (clk_i      ),
  .rst_i      (rst_i      ),
  .rx_i       (rx_i       ),
  .busy_o     (rx_busy    ),
  .baudrate_i (17'd115200 ),
  .parity_en_i(1'b1       ),
  .stopbit_i  (2'b1       ),
  .rx_data_o  (rx_data    ),
  .rx_valid_o (rx_valid   )
);

uart_tx tx(
  .clk_i      (clk_i      ),
  .rst_i      (rst_i      ),
  .tx_o       (tx_o       ),
  .busy_o     (tx_busy    ),
  .baudrate_i (17'd115200 ),
  .parity_en_i(1'b1       ),
  .stopbit_i  (2'b1       ),
  .tx_data_i  (tx_data    ),
  .tx_valid_i (tx_valid   )
);

endmodule

Listing 5. The pre-implemented portion of the programmer.

The following are already declared:

enum signals state and next_state;
signals send_fin, size_fin, flash_fin, next_round, used as state transition conditions;
counters msg_counter, size_counter, flash_counter, required to implement the transition conditions;
signals required for connecting the uart_rx and uart_tx modules:
- rx_busy,
- rx_valid,
- tx_busy,
- tx_valid,
- rx_data,
- tx_data;
the uart_rx and uart_tx module instances;
signals init_msg and flash_msg, storing the ASCII codes of the programmer's response messages, along with the logic and signals required to implement those responses:
- flash_size,
- flash_addr,
- flash_size_ascii,
- flash_addr_ascii.

Programmer Module Implementation

To implement this module, all signals declared above must be implemented, except for:

rx_busy, rx_valid, rx_data, tx_busy (since they are already connected to the outputs of the uart_rx and uart_tx modules),
send_fin, size_fin, flash_fin, next_round, flash_size_ascii, flash_addr_ascii, init_msg, flash_msg (since they are already implemented in the logic shown above).

The following programmer module outputs must also be implemented:

instr_addr_o;
instr_wdata_o;
instr_we_o;
data_addr_o;
data_wdata_o;
data_we_o;
core_reset_o.

FSM Implementation

To implement the state and next_state signals, use the state transition graph shown in Fig. 3. If none of the transition conditions are satisfied, the FSM must remain in the current state.

To support the transition logic, counters size_counter, flash_counter, and msg_counter must be implemented.

size_counter must reset to 4 and hold that value in all states except RCV_SIZE and RCV_NEXT_COMMAND. In those two states the counter must decrement whenever rx_valid is asserted.

flash_counter must reset to flash_size and hold that value in all states except FLASH. In that state the counter must decrement whenever rx_valid is asserted.

msg_counter must reset to INIT_MSG_SIZE-1 (the parameters INIT_MSG_SIZE, FLASH_MSG_SIZE, and ACK_MSG_SIZE are declared in Listing 5).

msg_counter must be initialized as follows:

in the FLASH state it must take the value FLASH_MSG_SIZE-1,
in the RCV_SIZE state it must take the value ACK_MSG_SIZE-1,
in the RCV_NEXT_COMMAND state it must take the value INIT_MSG_SIZE-1.

In the INIT_MSG, SIZE_ACK, and FLASH_ACK states, msg_counter must decrement whenever tx_valid is asserted.

In all other situations msg_counter must retain its current value.

Implementing Signals Connected to uart_tx

The tx_valid signal must be asserted only when tx_busy is de-asserted and the FSM is in one of the following states:

INIT_MSG,
SIZE_ACK,
FLASH_ACK

In other words, tx_valid is asserted when the FSM is in a state responsible for transmitting messages from the programmer, but the programmer is not currently sending the next byte of the message.

The tx_data signal must carry the next byte of one of the transmitted messages:

in the INIT_MSG state the next byte of the init_msg message is transmitted,
in the SIZE_ACK state the next byte of the flash_size message is transmitted,
in the FLASH_ACK state the next byte of the flash_msg message is transmitted.

In all other states it equals zero. The msg_counter counter is used to track which byte to send.

Implementing Instruction Memory and Data Memory Interfaces

Why does the programmer need two interfaces? The processor system uses two buses: the instruction bus and the data bus. To avoid overcomplicating the system logic with additional multiplexing, the programmer will implement two separate interfaces as well. It is necessary to distinguish when instruction memory is being programmed from when data memory is being programmed. Since both memories have independent address spaces, the addresses used for programming may be indistinguishable. However, we faced this same problem in Lab #14 when describing the linker script. At that time, the decision was made to assign the data section a deliberately large load address. This same solution fits naturally into the programmer's logic: if we use deliberately large load addresses when programming the system, we can determine the purpose of the current data block from its value — if the write address of the block is greater than or equal to the size of the instruction memory in bytes, the block is not intended for instruction memory and will be sent to the data memory interface; otherwise, it goes to the instruction memory interface.

Instruction memory signals (registers instr_addr_o, instr_wdata_o, instr_we_o):

on reset — reset to zero;
in the FLASH state when rx_valid is received, if the value of flash_addr is less than the instruction memory size in bytes:
- instr_wdata_o takes the value {instr_wdata_o[23:0], rx_data} (the newly received byte is shifted in from the right),
- instr_we_o is set to (flash_counter[1:0] == 2'b01),
- instr_addr_o is set to flash_addr + flash_counter - 1;
in all other situations instr_wdata_o and instr_addr_o retain their values, and instr_we_o is reset to zero.

Data memory signals (data_addr_o, data_wdata_o, data_we_o):

on reset — reset to zero;
in the FLASH state when rx_valid is received, if the value of flash_addr is greater than or equal to the instruction memory size in bytes:
- data_wdata_o takes the value {data_wdata_o[23:0], rx_data} (the newly received byte is shifted in from the right),
- data_we_o is set to (flash_counter[1:0] == 2'b01),
- data_addr_o is set to flash_addr + flash_counter - 1;
in all other situations data_wdata_o and data_addr_o retain their values, and data_we_o is reset to zero.

Implementing the Remaining Logic

The flash_size register works as follows:

on reset — reset to 0;
in the RCV_SIZE state when rx_valid is asserted, it takes the value {flash_size[2:0], rx_data} (shifted one byte to the left, with the newly received byte placed in the vacated position);
in all other situations it retains its current value.

The flash_addr register nearly mirrors the behavior of flash_size:

on reset — reset to 0;
in the RCV_NEXT_COMMAND state when rx_valid is asserted, it takes the value {flash_addr[2:0], rx_data} (shifted one byte to the left, with the newly received byte placed in the vacated position);
in all other situations it retains its current value.

The core_reset_o signal is asserted when the FSM state is not FINISH.

Since the above is essentially a complete description of the programmer's behavior in plain language, the task effectively reduces to translating the programmer description from English into SystemVerilog.

Integrating the Programmer into processor_system

Figure 4. Integration of the programmer into processor_system.

First, replace the instruction memory and add the new module. Then connect the programmer to the instruction memory and multiplex the programmer's data memory interface output with the LSU data memory interface. Replace the processor reset signal with the core_reset_o output.

If the uart_tx peripheral was used, its tx_o output must be multiplexed with the programmer's tx_o output in the same way as was done for the data memory interface signals.

Program Loading Example

To verify the programmer in practice, prepare a compiled program as was done in Lab #14 (or use the ready-made .mem files from your Lab #13 variant). However, unlike Lab #14, do not delete the first line from the data memory initialization file — the load address will now be used during the loading process.

Connect the debug board to the computer's serial port (for the Nexys A7 board it is sufficient to simply connect the board with a USB cable, as was done throughout the labs for FPGA programming). You will need to find the COM port to which the debug board is connected. On Windows, the required COM port can be found through Device Manager, which can be opened from the Start menu. In that window, find the "Ports (COM & LPT)" section, expand it, and then connect the debug board via USB (if not already connected). A new device will appear in the list, with the COM port number shown in parentheses.

After connecting the debug board to the computer's serial port and configuring the FPGA with your project, initialize the memory using the provided script. An example of running the script is shown in Listing 6.

# Example script usage. Optional arguments are listed first
# (data memory initialization and various VGA controller memory regions),
# followed by the required arguments: the file for instruction memory
# initialization and the COM port.
$ python flash.py --help
usage: flash.py [-h] [-d DATA] [-c COLOR] [-s SYMBOLS] [-t TIFF] instr comport

positional arguments:
  instr                 File for instr mem initialization
  comport               COM-port name

optional arguments:
  -h, --help            show this help message and exit
  -d DATA, --data DATA  File for data mem initialization
  -c COLOR, --color COLOR
                        File for color mem initialization
  -s SYMBOLS, --symbols SYMBOLS
                        File for symbols mem initialization
  -t TIFF, --tiff TIFF  File for tiff mem initialization

python3 flash.py -d /path/to/data.mem -c /path/to/col_map.mem \
        -s /path/to/char_map.mem -t /path/to/tiff_map.mem /path/to/program COM

Listing 6. Example of using the memory initialization script.

Steps

Describe the rw_instr_mem module using the code presented in Listing 4.
Add the bluster_pkg package, which contains parameter declarations and helper tasks used by the module and the testbench.
Describe the bluster module using the code presented in Listing 5. Complete the description of this module.
1. Implement the FSM using signals state, next_state, send_fin, size_fin, flash_fin, next_round.
2. Implement the counter logic for size_counter, flash_counter, msg_counter.
3. Implement the logic for signals tx_valid, tx_data.
4. Implement the instruction memory and data memory interfaces.
5. Implement the logic for the remaining signals.
Verify the module using the testbench provided in lab_15.tb_bluster.sv. If error messages appear in the TCL console, find and fix them.
1. Before running the simulation, make sure the correct top-level module is selected in Simulation Sources.
2. The testbench requires the peripheral_pkg package from Lab #13, as well as the files lab_15_char.mem, lab_15_data.mem, and lab_15_instr.mem from the mem_files folder.
Integrate the programmer into the processor_system module.
1. In the processor_system module, replace the instruction memory with the rw_instr_mem module.
2. Add an instance of the programmer module to processor_system.
  1. The instruction memory interface connects to the write port of rw_instr_mem.
  2. The data memory interface is multiplexed with the LSU data memory interface.
  3. Replace the processor_core reset signal with the core_reset_o signal.
  4. If the uart_tx peripheral is present, its tx_o output must be multiplexed with the programmer's tx_o output in the same way as the data memory interface was multiplexed.
Verify the processor system after integrating the programmer using the testbench provided in lab_15.tb_processor_system.sv.
1. This testbench must be updated for your variant. Find the lines containing the helper call program_region whose first arguments are "YOUR_INSTR_MEM_FILE" and "YOUR_DATA_MEM_FILE". Update these lines with the names of the files used to initialize your instruction memory and data memory in Lab #13. If you did not initialize the data memory, you may delete or comment out the corresponding call. You may add as many calls as needed.
2. The .mem files you use to initialize your memory require an update. You must specify the memory cell address at which initialization should begin. This is done by adding a line of the form @hex_address at the beginning of the file. Example: @FA000000. The line must begin with the @ character, and the address must be in hexadecimal. For instruction memory, the zero address is required, so use @00000000. For data memory, use an address that exceeds the instruction memory size but does not fall within the address space of other peripherals (the most significant byte of the address must be zero). Since the system uses byte addressing, the cell address will be 4 times smaller than the address the processor would use. This means that if you wanted to initialize the VGA controller memory, you would need to use @01C00000 instead of @07000000 (01C00000 * 4 = 07000000). Therefore, the optimal initialization address for data memory is @00200000, since the cell at address 00200000 corresponds to address 00800000 — this address does not overlap with the address space of other peripherals and is guaranteed to be larger than any possible instruction memory size. Examples of start address usage can be found in the files lab_15_char.mem, lab_15_data.mem, and lab_15_instr.mem in the mem_files folder.
3. The testbench will wait for memory initialization to complete, after which it will apply the same test stimuli as the testbench from Lab #13. Therefore, if you used the same initialization files, the system behavior after initialization should not differ from the simulation behavior in Lab #13.
4. Before running the simulation, make sure the correct top-level module is selected in Simulation Sources.
Proceed to the next step only after you have fully verified that the system works correctly during simulation (confirmed that correct data was written to instruction and data memories, and that the processor then began handling interrupts from the input device). Bitstream generation will take a significant amount of time, and the outcome will simply be "worked / didn't work" with no additional information, so without a solid simulation foundation you will not get far.
Add the constraints file (nexys_a7_100t.xdc) to the project if it has not been added yet, or replace its contents with the data from the file provided in Lab #13.
Verify the operation of your processor system on the FPGA debug board.
1. Use the flash.py script to initialize the processor system memory.
2. Before initialization, connect the debug board to the computer's serial port and find the port number (see Program Loading Example).
3. The file format for memory initialization via the script is the same as the format used in the testbench. This means the first line of all files must be a line containing the memory cell address at which initialization should begin (see step 6.2).
In the current implementation, memory can only be initialized once since the last reset, which may be inconvenient when debugging programs. Think about how the programmer's FSM could be modified to allow an unlimited number of memory initializations without resetting the entire system.

README.md

Lab 15. Programmer
