APS/Labs/12. Daisy chain

Lab 12. Priority Interrupt Unit

In the basic version of the lab work, it is proposed to implement a processor system with a single interrupt source, which is sufficient for completing the labs. However, if you wish to improve the system and increase the number of peripheral devices, supporting only one interrupt source will create many complications. In this lab work, you need to implement a priority interrupt unit and integrate it into the interrupt controller, increasing the number of potential interrupt sources to 16.

Goal

1. Develop a priority interrupt unit (PIU) built using a daisy chain scheme.
2. Integrate the PIU into the interrupt controller.

Theory

If the processor system is expected to have more than one interrupt source, it is necessary to determine how to handle collisions — simultaneous interrupt requests from multiple sources. One way to solve this problem is to implement interrupt priorities. From a circuit design perspective, the simplest approach is to implement a scheme with a static, fixed priority. One such scheme is a daisy chain. An example of such a scheme can be seen in Fig. 1.

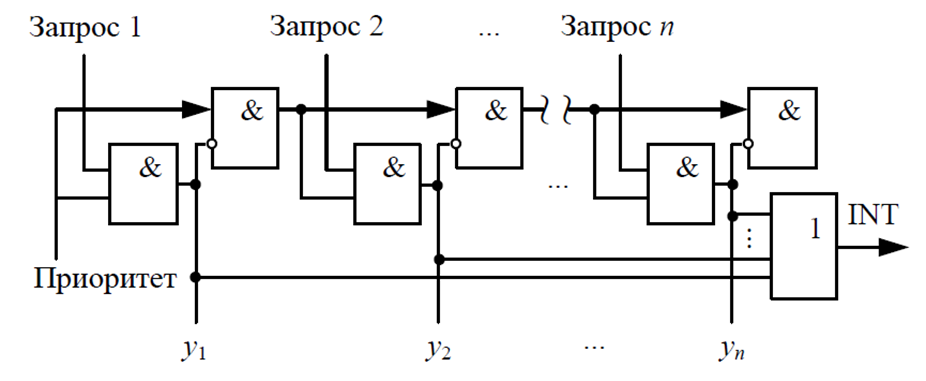

Figure 1. Daisy chain block diagram.

This scheme consists of two arrays of AND gates. The first array (the top row of elements) generates a multi-bit signal (let's call it ready, shown in Fig. 1 as "Priority"), which is ANDed with the interrupt requests using the bottom row of AND gates, producing the multi-bit signal y. Note that the result of the AND operation on each element of the bottom array affects the AND result of the next element in the top array, and vice versa (readyₙ₊₁ depends on yₙ, while yₙ depends on readyₙ). As soon as any bit of y becomes 1, it immediately propagates as 0 through all subsequent bits of ready, zeroing them. Once zeroed, the ready bits zero the corresponding bits of y (zero bits in ready prevent interrupt generation for the corresponding bits of y).

The bottom array of AND gates can be described using a continuous assignment of the bitwise AND between ready and the interrupt request signal.

To describe the top row of AND gates, you will need to make a continuous assignment of readyₙ & !yₙ to the n+1-th bit of ready. The generate for construct is convenient for this, as it allows automating the creation of many identical structures.

Let's examine how this construct works. Suppose we want to create a bitwise assignment of a 5-bit signal a from a 5-bit signal b.

Indices used by the construct must be declared with the genvar keyword. Then, within the area bounded by the generate/endgenerate keywords, a loop of assignments is described (modules can also be instantiated inside such a loop):

logic [4:0] a;
logic [4:0] b;

// ...

genvar i;
generate
  for(i = 0; i < 5; i++) begin
    assign a[i] = b[i];
  end
endgenerate

Listing 1. Example of using the generate construct.

Of course, in this example one could simply write a single continuous assignment assign a = b;, but for implementing the top row of AND gates, such a multi-bit continuous assignment would not synthesize the required circuit.

Practice

Let's consider the interrupt controller implementation shown in Fig. 2.

Figure 2. Block diagram of the priority interrupt unit.

In addition to ports clk_i and rst_i, the daisy_chain module will have 3 inputs and 3 outputs:

• masked_irq_i — 16-bit input for a masked interrupt request (i.e., the interrupt source has already been masked by the mie control and status register signal).
• irq_ret_i — signal indicating return of control to the main instruction flow (exit from the interrupt handler).
• ready_i — signal indicating the processor is ready to accept a trap (i.e., the processor is not currently inside a trap handler). This is bit zero of the ready signal in the daisy chain. While ready_i is zero, the daisy chain will not generate any interrupt signals.
• irq_o — signal indicating the start of interrupt processing.
• irq_cause_o — interrupt cause.
• irq_ret_o — signal indicating completion of interrupt request handling. It will correspond to cause_o at the moment the mret_i signal appears.

The internal signal cause is the signal y from Fig. 1. As explained above, this signal can contain only one set bit, which corresponds to the accepted interrupt request. Therefore, this result can be used as a signal to identify the interrupt cause. The OR reduction (OR of all bits) of this signal yields the final interrupt request.

However, as mentioned in Lab #10, the RISC-V specification imposes certain requirements on the encoding of the mcause code for the interrupt cause. In particular, the most significant bit must be set to one, and the value of the remaining bits must be greater than 16. From a circuit design perspective, this is most easily implemented by concatenation: {12'h800, cause, 4'b0000} — in this case the most significant bit will be one, and if any bit of cause is one (which is the criterion for an interrupt occurring), the lower 31 bits of mcause will be greater than 16.

The register in Fig. 2 stores the value of the internal cause signal so that upon completion of the interrupt, a one is asserted on the corresponding bit of the irq_ret_o signal, notifying the device whose interrupt was being handled that processing has finished.

Assignment

• Implement the daisy_chain module.
• Integrate daisy_chain into the interrupt_controller module according to the scheme shown in Fig. 3.
• Reflect the changes to the interrupt_controller signal prototype in the processor_core and processor_system modules.

Figure 3. Block diagram of the priority interrupt unit.

Important

Note that the bit width of signals irq_req_i, mie_i, and irq_ret_o has changed. These are now 16-bit signals. The signal that previously went to the irq_ret_o output now goes to the irq_ret_i input of the daisy_chain module. The generation of the interrupt cause code irq_cause_o has been moved into the daisy_chain module.

Steps

1. Implement the daisy_chain module.
   1. When forming the top array of AND gates from Fig. 2, you need to generate 16 continuous assignments using a generate for block.
   2. The bottom array of AND gates can be formed using a single continuous assignment via the bitwise AND operation.
2. Verify the daisy_chain module using the verification environment provided in the file lab_12.tb_daisy_chain. If error messages appear in the TCL console, you need to find and fix them.
   1. Before running the simulation, make sure the correct top-level module is selected in Simulation Sources.
3. Integrate the daisy_chain module into the interrupt_controller module according to the scheme shown in Fig. 3.
   1. Make sure to update the bit width of signals irq_req_i, mie_i, and irq_ret_o in the interrupt_controller module.
   2. Also update the bit width of signals irq_req_i and irq_ret_o in the processor_core and processor_system modules.
   3. Additionally, you now need to use the upper 16 bits of the mie signal instead of a single bit when connecting the interrupt_controller module inside processor_core.
4. Verify using the testbench from Lab #11 that nothing was broken during integration.
